SMC Vessel Motion Display System

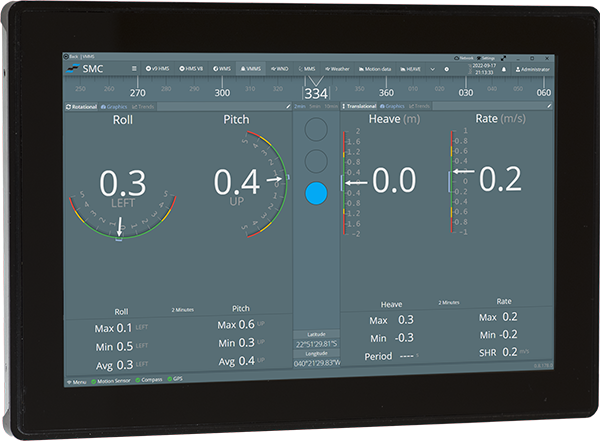

SMC-1310 Vessel Motion Monitoring System Display


Key points

• Clear and Easy Graphical Display
• 10.1" Touch Screen Panel PC
• Operator Settable Alarms
• Data Storage for Analysis
• Improves Safety during Transfers
• Go / No Go Warning light
• 2 Years Warranty





CONTACT SMC FOR QUOTE



Application

The Vessel Motion Monitoring System is a pre-installed integrated system solution running on the SMC-1310 Panel PC. The SMC Vessel Motion Display provides clear and easy assessment of the vessel’s motions during a variety of operations such as Crew and equipment Transfers.


Function

Trend data assists in quantifying the vessels motions to assist in decisions of speed and course changes that can increase the safety and comfort for crew and personnel onboard.

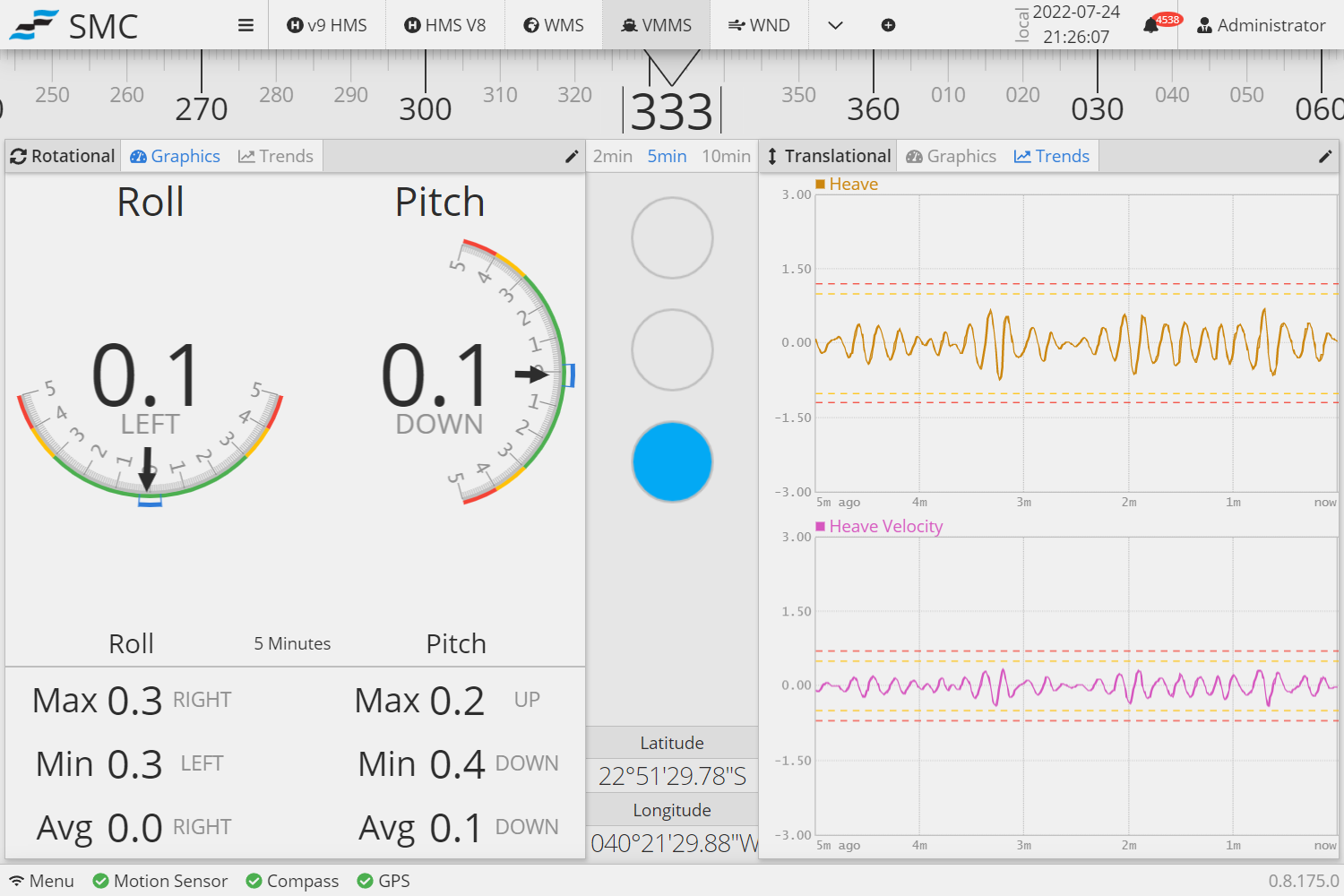

Graphics data provides Rotational and Transitional data for Roll, Pitch, Heave and Heave Rate along with accurate Current, Max, Min and Average values. Pre-set limits for Operation, Alarm and Warning levels with the matching Traffic light display assist the vessel operators to make quick decisions on the safety of the operation taking place.

The Interface can be accessed remotely via the web interface


Data Log

All Data is stored and logged on the device internal memory. The data is stored time-stamped in a SQL database for later analysis and exports.


Instrument Integration

SMC Motion Reference Units type IMU-108 and IMU-008 provide the Motion Data while serial data from vessel GPS and Gyro systems can be connected for Position, Direction and Speed data.


Vessel Motion Display



Specifications

System Specification Processor: ARM based processor
Operating System: Linux
Storage: 8 GB, 4 GB for logging
RAM: 2 GB
Display size: 10.1 inch
Brightness: 800 cd/m2
Aspect Ratio: 16:10
Resolution: 1280x800
Viewing angle: 89 degrees
Touch Type: Capacitive
Mounting: VESA 75x75mm
External Output Serial, Ethernet, SNMP, Modbus TCP/RTU
Security Roles Administrator, Operators, Technicians, Limited
Logging Logging of all interfaced and processed parameters, Usage approx. 10 GB data per year
Built in Backup features
Interface Built-in Serial 4xRS232 or 2xRS422/485
USB Type A for System Expansion
Ethernet
Environmental Operating Temperature Range 0° to +50° Celsius
IP rating IP22
Power requirements 12-36 VDC
Power Consumption 20W
Warranty & Support 2 Years Hardware & Software Warranty
Free Technical remote support
