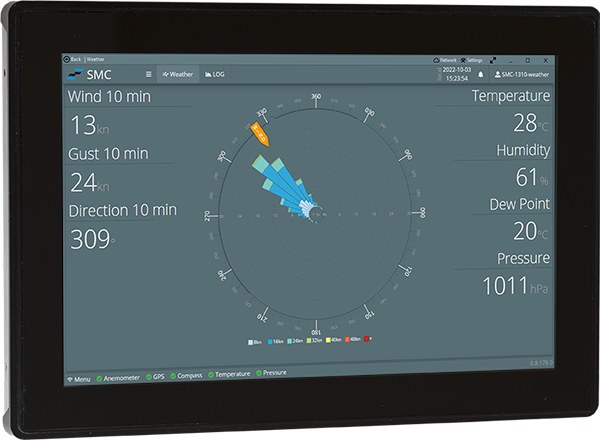

SMC-1310 Weather Display

SMC-1310 Weather Display

Key points

• Weather Display
• Industrial design
• Accessible over LAN/WAN
• 4GB emmc for logging
• Security Roles
• 2 Years Warranty

Download SMC-1310 Datasheet (406 KB)


SMC-1310 Description

The SMC-1310 is a high resolution and high brightness 10.1” Linux industrial touch screen panel PC with embedded Weather Display. The system is a stand-alone device for easy to read Weather data.

Weather Display

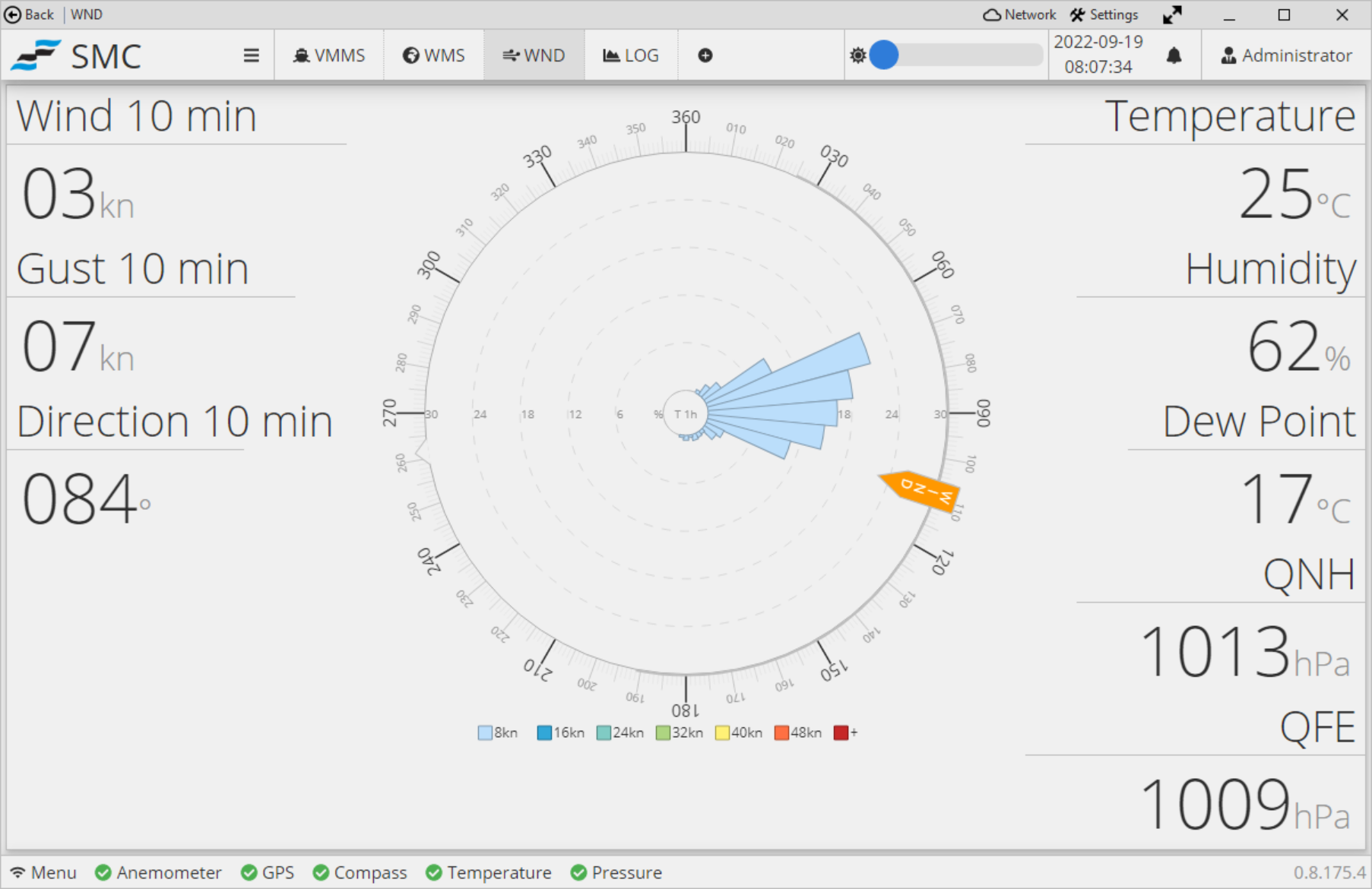

The SMC-1310 when configured as a Weather Display presents the typical layout for Wind, Temperature, Humidity and Pressure data. Other instruments can be used and configured in the same graphical layout.

SMC-1310 Weather Display

Data Log

All data is stored in the 8 GB built-in emmc memory drive. The data is time stamped and stored in a SQL database. The data can be viewed using the built-in log view and can be exported to third party systems using a comma separated text file. Logged data can be sent via automatic e-mail at scheduled times.

External systems

The SMC-1310 has built-in functionality to communicate with third-party systems via Modbus RTU/UDP and SNMP protocol. Features also include data transfer to remote SMC systems.

The graphical display and logged data can be accessed remotely over the LAN via a web interface using a standard browser.


System Specification Processor: ARM based processor
Operating System: Linux
Storage: 8 GB
Display size: 10.1 inch
Brightness: 800 cd/m2
Aspect Ratio: 16:10
Resolution: 1280x800
Viewing angle: 89 degrees
Touch Type: Capacitive
Mounting: VESA 75x75mm
External Output Serial, Ethernet, SNMP, Modbus TCP/RTU
Security Roles Administrator, Operators, Technicians, Limited
Logging Logging of all interfaced and processed parameters, Usage approx. 10 GB data per year
Built in Backup features
Interface Built-in Serial 4xRS232 or 2xRS422/485
USB Type A for System Expansion
Environmental Operating Temperature Range 0° to +50° Celsius
IP rating IP22
Power requirements 12-36 VDC
Power Consumption 20W
Warranty & Support 2 Years Hardware & Software Warranty
Free Technical remote support
