SMC-1310 Wind Display




SMC-1310 Wind Display


Key points

• Wind Display
• Industrial design
• Accessible over LAN/WAN
• 4GB emmc for logging
• Security Roles
• 2 Years Warranty


Download SMC-1310 Datasheet (406 KB)


CONTACT SMC FOR QUOTE



SMC-1310 Description

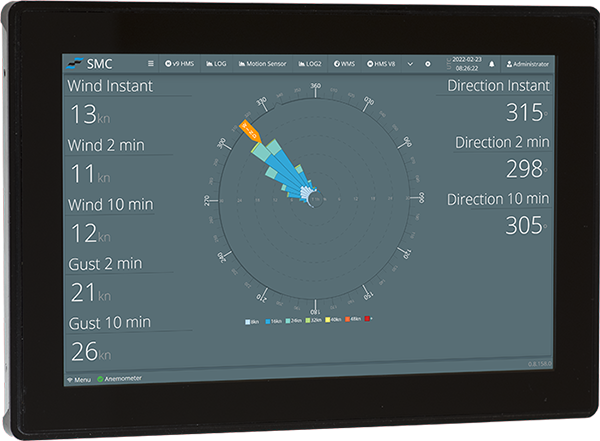

The SMC-1310 is a high resolution and high brightness 10.1” Linux industrial touch screen panel PC with embedded Wind Display. The system is a stand-alone device for easy to read Wind data.




Wind Display

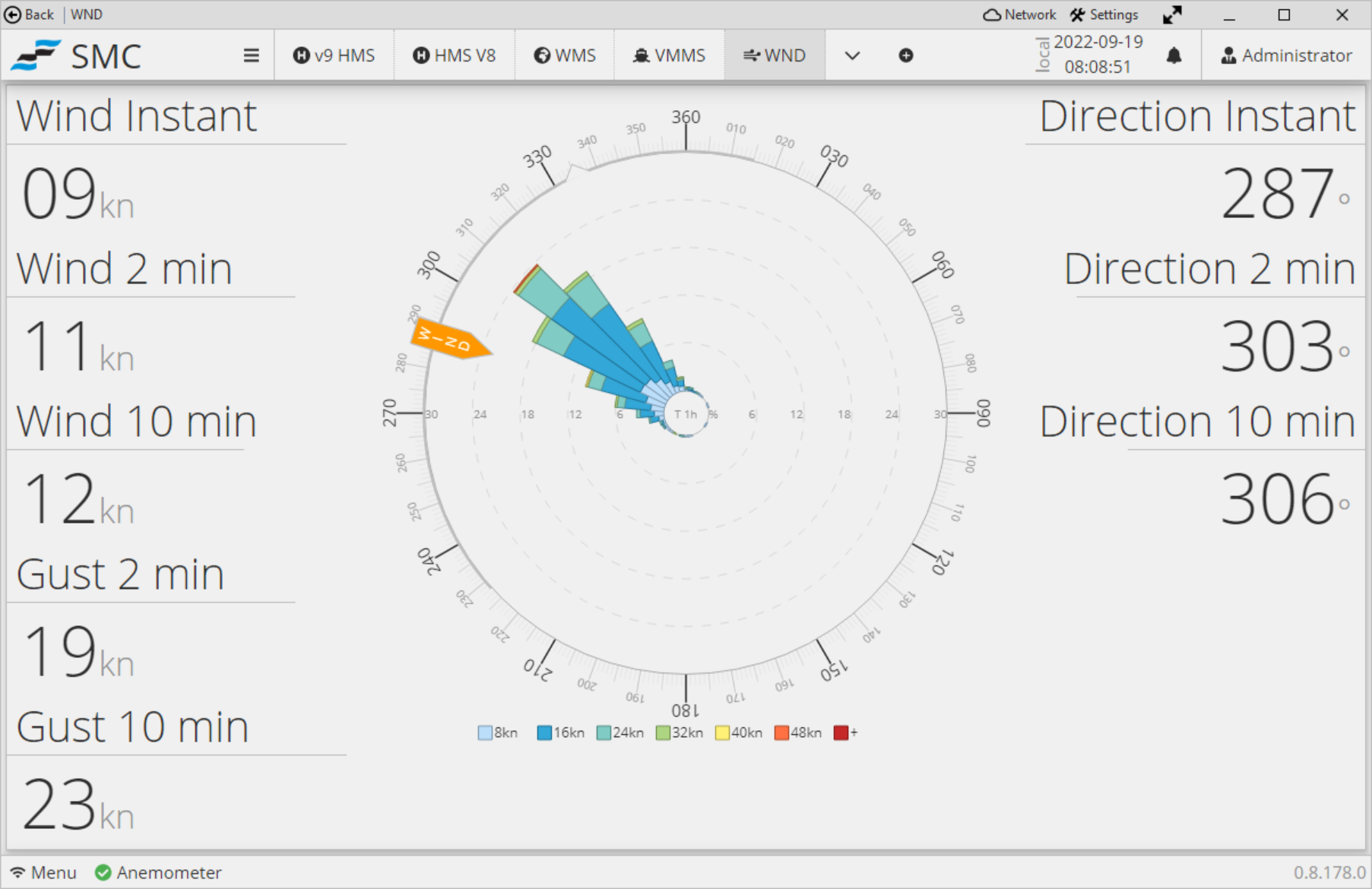

Wind Display layout presents the live wind speed and direction along with the calculated Wind 2min and 10min averages, Wind Gust 2min and 10min maxes as well as a graphical layout in a Compass Rose. The data display is configurable from the settings to match the user Wind Display preferences.

SMC-1310 Wind Display



Data Log

All data is stored in the 8 GB built-in emmc memory drive. The data is time stamped and stored in a SQL database. The data can be viewed using the built-in log view and can be exported to third party systems using a comma separated text file. Logged data can be sent via automatic e-mail at scheduled times.

External systems

The SMC-1310 has built-in functionality to communicate with third-party systems via Modbus RTU/UDP and SNMP protocol. Features also include data transfer to remote SMC systems.

The graphical display and logged data can be accessed remotely over the LAN via a web interface using a standard browser.





Specifications

System Specification Processor: ARM based processor
Operating System: Linux
Storage: 8 GB
RAM: 2 GB
Display size: 10.1 inch
Brightness: 800 cd/m2
Aspect Ratio: 16:10
Resolution: 1280x800
Viewing angle: 89 degrees
Touch Type: Capacitive
Mounting: VESA 75x75mm
External Output Serial, Ethernet, SNMP, Modbus TCP/RTU
Security Roles Administrator, Operators, Technicians, Limited
Logging Logging of all interfaced and processed parameters, Usage approx. 10 GB data per year
Built in Backup features
Interface Built-in Serial 4xRS232 or 2xRS422/485
USB Type A for System Expansion
Ethernet
Environmental Operating Temperature Range 0° to +50° Celsius
IP rating IP22
Power requirements 12-36 VDC
Power Consumption 20W
Warranty & Support 2 Years Hardware & Software Warranty
Free Technical remote support
