Motion Reference Unit for Hydrographic Survey


High Reliability, accurate data, robust design, faster and low-cost deployment are many of the characteristics Hydrographers request when selecting systems and components for a specific sonar system to achieve accurate seabed mapping.

The SMC IMU-108 has been proven for many years to meet these specifications for shallow water seafloor, harbour and coastline mapping using multibeam sonar systems, sidescan sonars and sub-bottom profilers.

Key points

• Single Beam
• Side-Scan
• Multibeam
• Swathe
• Sub-bottom profilers

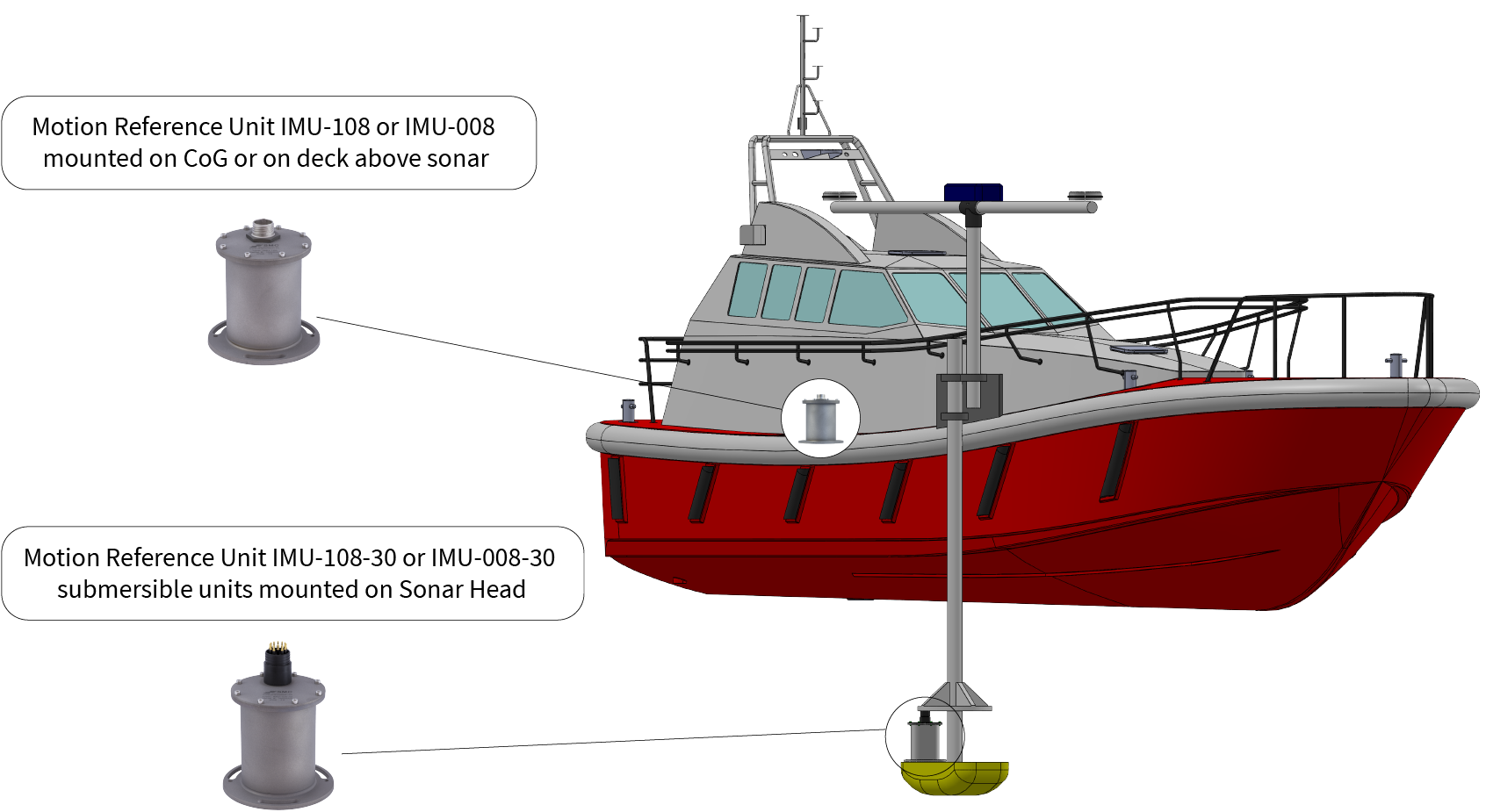

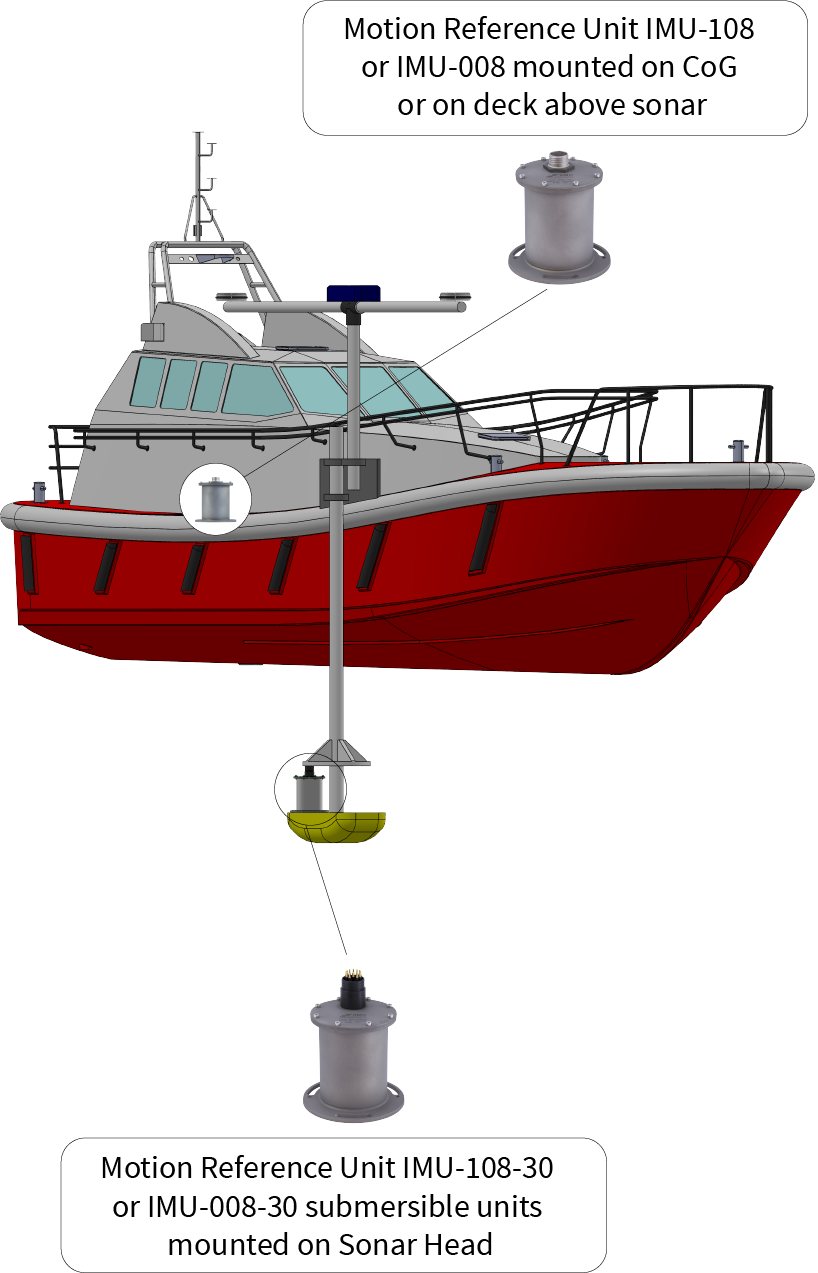

Recommended MRU mounting positions:

Motion Reference Unit for Hydrographic Survey Motion Reference Unit for Hydrographic Survey

A standard installation for an IMU-108-30 IP68 30m depth rated unit would involve the IMU-108 mounted on the Sonar for the ideal motion compensation.

For an IMU-108 IP66 surface unit the recommendation is either directly above the Sonar Mount on the vessel or at the Center of Gravity for the vessel.

The IMU-108 is optimised for the marine environments and is compatible with multiple systems and processing packages.


Motion reference unit product range

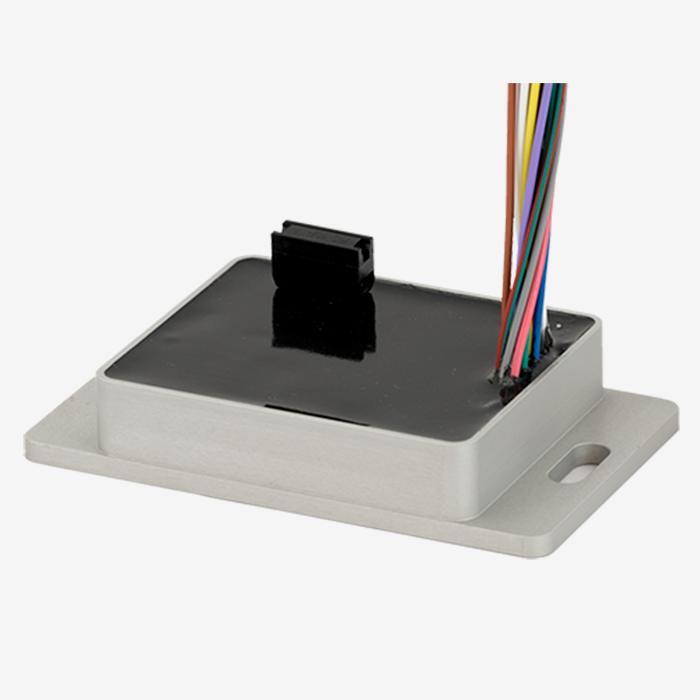

Motion Reference Unit IMU-10x IMU-10x
Roll and Pitch 0.03°
Heave 5 cm
Download
Datasheet
  Explore

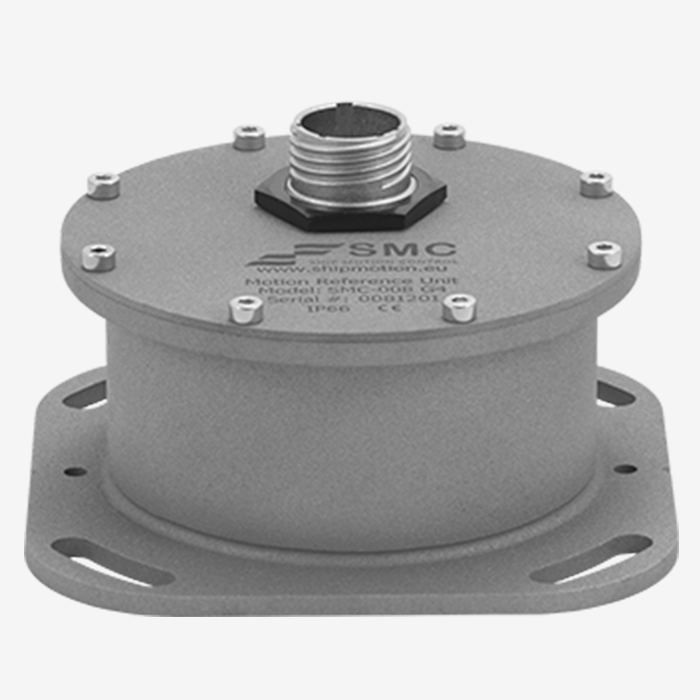

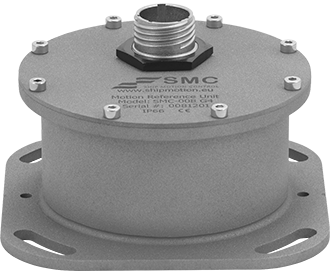

Motion Reference Unit IMU-00x IMU-00x
Roll and Pitch 0.25°
Heave 5 cm
Download
Datasheet
  Explore

Model Depth Rated Roll/Pitch-Heave Operational Area
IMU-108 No 0.03° RMS - 5cm or 5% All systems
IMU-108-30 30m depth Rated 0.03° RMS - 5cm or 5% All systems
IMU-008 No 0.25° RMS - 5cm or 5% Near Shore
IMU-008-30 30m depth Rated 0.25° RMS - 5cm or 5% Near Shore
