Motion Sensor for Active Heave Compensation AHC

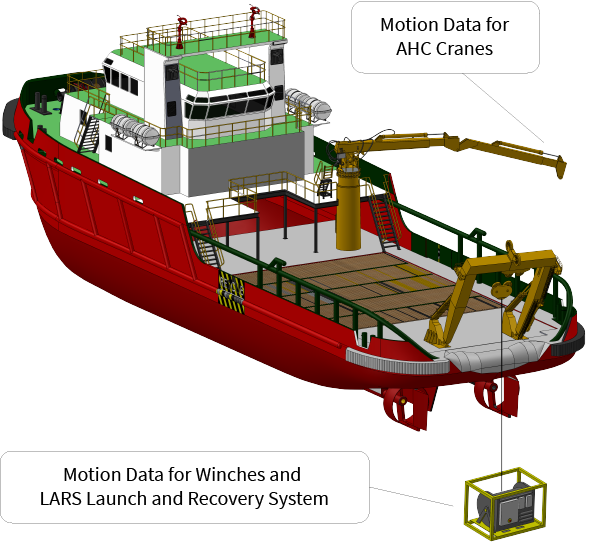

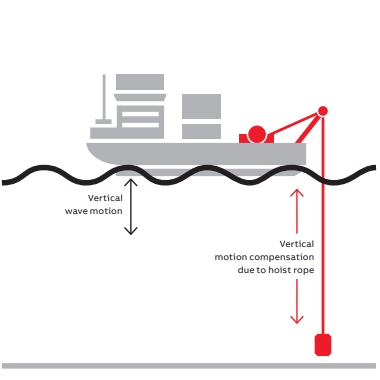

The Offshore Market has seen an increased need for Offshore Cranes, Winches, LAR’s as well as Gangway (walk to work) systems.

The requirement to maintain safe operations in ever more demanding environments, while decreasing operation downtimes requires at the heart of every solution an accurate and dependable MRU Motion Reference Unit.

SMC is working together with multiple AHC system designers for new build and retrofit modular systems that reduce the investment required in new control systems.

Key points

• Offshore Cranes
• Winches
• LARS
• Gangways



Motion Sensor for Active Heave Compensation AHC Motion Sensor for Active Heave Compensation AHC

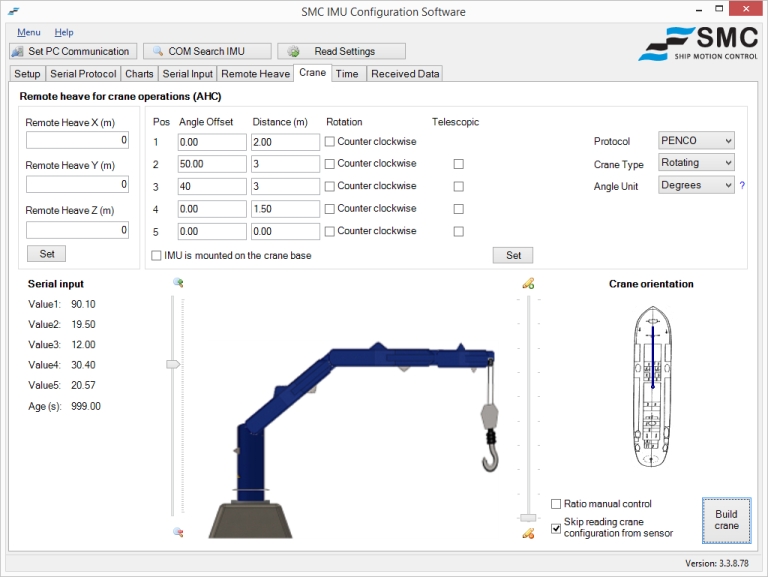

SMC, together with Bosch Rexroth Drives, a market leader in Primary Active Heave Compensation, has developed a Unique feedback loop from a Crane/Winch plc system and encoders feeding data directly into the Motion Sensor.

Crane

This system provides a constant update in the Remote Heave location during Rotation, Extension and Slewing of the Crane/Winch.


Motion reference unit product range

Motion Reference Unit IMU-10x IMU-10x
Roll and Pitch 0.03°
Heave 5 cm
Download
Datasheet
  Explore
Motion Reference Unit IMU-00x IMU-00x
Roll and Pitch 0.25°
Heave 5 cm
Download
Datasheet
  Explore


Model Roll/Pitch Heave Operational Systems
IMU-008 0.25° RMS 5cm or 5% Winches, LARS
IMU-108 0.03° RMS 5cm or 5% Cranes, Winches, LARS, Gangways

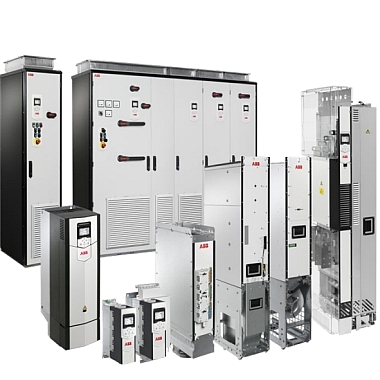

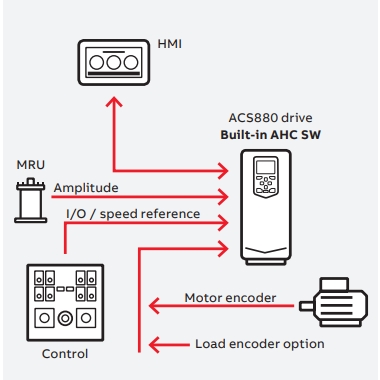

SMC Motion Sensor selected by ABB for their AHC winch drive that enables the seamless integration of the IMU range of MRU units with the ABB ACS800 drives for new and Retrofit applications.

More information about the ABB AHC solution: https://new.abb.com/drives/segments/winches
